One Man 1 Atmosphere Submersible, also known as OMAS SPIDER

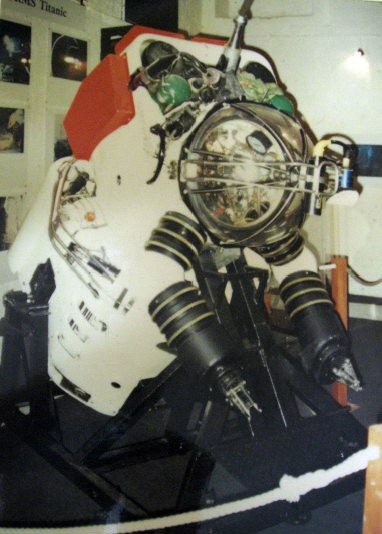

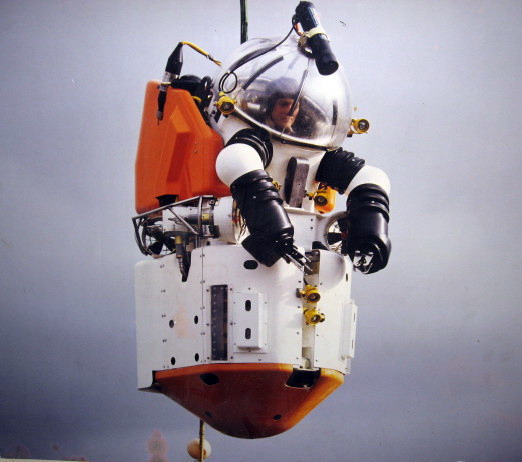

The Spider 'Atmospheric' Diving Suit was produced in the 1970s for exploration and maintenance work in the North Sea. The Spider had a depth rating of 2000 feet and was used in many deep operations mainly from drilling rigs. It had an eclectically insulated GRP body and a Plexiglas hemispherical dome. The diver could operate articulated arms with powered claws capable of various tasks. Six variable direction motors and thrusters provide propulsion . For static operations there are suction pads for gripping smooth surfaces.

Atmospheric Diving Suits normally work in pairs for safety reasons to help release the trapped vehicle should this occur. This also enables round the clock operations.
The Spider was easily moveable and could be deployed very quickly. Apart from work in the Petrochemical industry it could be used for salvage and rescue work. The diver in the vehicle breathes normal air so could work for long periods sometimes eight hours a day without costly saturation diving systems. It was used until 1982 when it was replaced by the Draeger-Newt suit suit , designed by Dr Phil Nuytten from Canada.

Technical specification:
Height: 2,2 Metres
Width: 1.5 Metres
Displacement: 1200kgs
Depth rating: 610 Metres
Propulsion: 6 x 1 hp motors
Umbilical: 12 Tonne breaking strain
TV System: Low light/colour /real time recording
Emergency power: 24 V 8 Ah for emergency communications

The Spider was completely self contained with power packs and oxygen supply on board giving up to 72 hours of emergency life support systems.

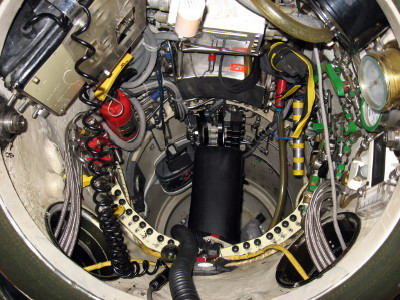

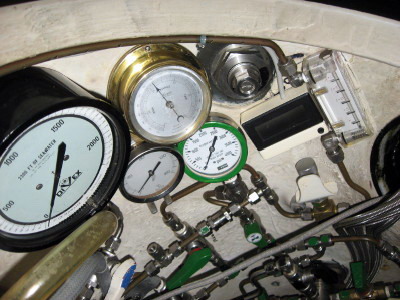

Interior view showing the divers seat and some of the controls. A view of the divers depth gauges etc.
Scrubber units can be seen in the base of the vehicle and the auto pilot can be seen near the diver's head position.
